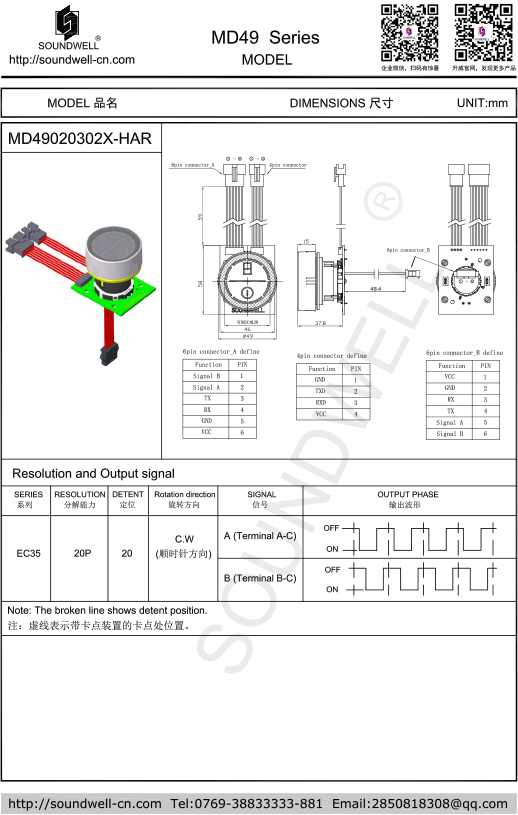

Module model： |
MD49 series |
|
| Applications： |
Household appliances, audio and other related electronic devices. |
|
| Product Features: |
The digital tube light strip changes with the number; The digital tube has a touch switch for a strong sense of operation experience; High-grade appearance and a decorative circle is designed in the middle; |
|
| Main Specifications: |
Rated voltage: DC 3.6V; Maximum rated current: 150mA; Working temperature: -20℃~80℃; Mechanical rotational angle: 360°; Number of detent: 20; Pulses: 20; Rotational life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 400±150gf.cm
2. Number of detent: 20
3. Shaft Wobble (mm p-p): 0.3mm Max
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 20 pulses
2. Rated power: DC3.6V 150mA
3. Insulation resistance: 100M?1 Minute at DC 250V
4. Dielectric Voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
